Land surveying comes before almost everything else on a brownfield site. Environmental consultants need a coordinate framework before they can place a single boring. Designers need boundaries before they can lay out anything. Attorneys need mapped exhibits before they can draft the restrictions that will govern the property for decades. A former industrial parcel carries a complicated record and a complicated surface, and the survey is what turns both into something a project team can use.

Recovering Boundaries From Former Industrial Ownership Patterns

Industrial properties rarely have simple boundaries. A single plant site may have grown from a dozen separate purchases made over sixty years. Rail spurs cut through it. Adjoining companies traded strips of ground. Some parcels were described by metes and bounds, others by reference to buildings that no longer stand.

The surveyor works through that record in order. They assemble the deeds, plats and prior surveys, then sort them by date to see how the property came together. Descriptions that reference a demolished structure or a relocated track get flagged for field investigation. Senior rights matter here, since an overlap between two old descriptions usually favors the earlier one.

Fieldwork tests the record. Crews search for original markers along the perimeter. On industrial ground they also look at heavy features that tend to survive, like massive foundation walls, rail alignments and old fence lines set on concrete. Each piece of evidence gets weighed against the record before the surveyor sets a line.

Mapping Foundations, Pavement, and Abandoned Site Features

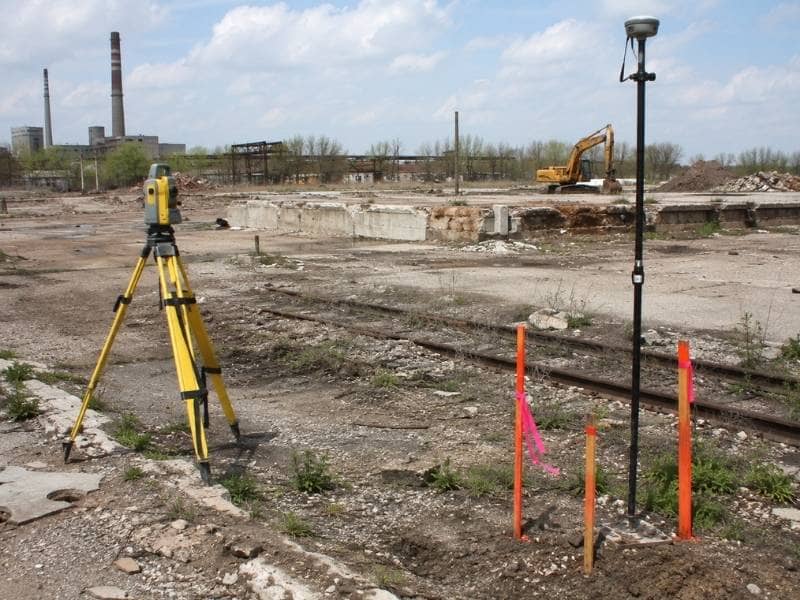

The surface of a brownfield tells part of its own history. Crews map building foundations, slabs, pits, pads, loading docks, tank bases, rail track and pavement of every vintage. They record what’s visible and note the condition of each feature.

Remnants affect both remediation and redevelopment. A buried slab changes how a bore gets drilled. A former tank pad points toward a place worth sampling. An old rail bed may sit on ballast that behaves nothing like the soil around it. Mapping those features gives the environmental team and the design team the same starting picture.

Elevations belong in the same dataset. Industrial sites are often filled, degraded and paved in layers over the years. Knowing the current surface, and where it changes abruptly, helps everyone understand what sits below.

Creating Survey Grids for Environmental Investigation

Environmental work runs on coordinates. Consultants design sampling plans on a grid, then need crews to find those locations in the field. Surveyors set the grid, stake the points and record what actually got installed.

Survey support during investigation typically covers:

• Staking proposed boring, test pit and monitoring well locations from the sampling plan
• Recording the as-installed position of each point after drilling
• Measuring the elevation of well casings for groundwater calculations
• Tying sampling locations to the property boundary and the site base map
• Producing figures the consultant can include in reports to the agency

Accuracy on well elevations deserves special mention. Groundwater flow direction gets calculated from small differences between wells. A sloppy elevation can point the analysis the wrong way, which is why those measurements get run to a tighter standard than general site mapping.

Defining Areas Subject to Environmental Restrictions

Cleanup rarely removes everything. Many sites end up with a cap over part of the property, or with limits on digging, or with restrictions on how certain areas can be used. Those limits get recorded against the land, and they need a legal description and a map.

The surveyor prepares both. They locate the boundary of the capped area or restricted zone in the field, draw it on an exhibit, and write a description that matches. The exhibit gets attached to the environmental covenant or deed restriction that gets recorded with the county.

Precision here has a long tail. Twenty years from now, a contractor planning an addition will need to know exactly where the restricted area begins. A vague description creates a problem that gets more expensive with time. A measured, monumented boundary answers the question directly.

Confirming the Site After Cleanup and Regrading

Remediation reshapes the ground. Excavation removes soil. Backfill replaces it. Caps add material on top. Grading changes drainage. By the time cleanup ends, the site rarely matches the survey taken before it started.

A post-remediation survey updates the base. Crews shoot the new surface, verify that cap elevations and thicknesses match what the plan required, and confirm the position of anything installed during cleanup. Monitoring wells that stay in service get located again, since some get damaged or replaced during the work.

That updated map becomes the foundation for construction. Designers finally get a surface that reflects reality, which is what they should have been waiting for all along. Boundary monuments get checked at the same time, because heavy equipment on a site this active rarely leaves every corner where it is found.
